Solar Generator with Li-ion Battery on Trailer
Trailer Length: | 3.50M |
MAX Width: | 1.90M |
MAX Height: | 1.50M |
Total Weight with battery and solar panels: | 630KG(5KWH)/ 670KG(10KWH)/ 710KG(15KWH) |
Monocrystal solar panel: | working Voltage 72V 1200W @STC (Single cell 36V, 200W) |

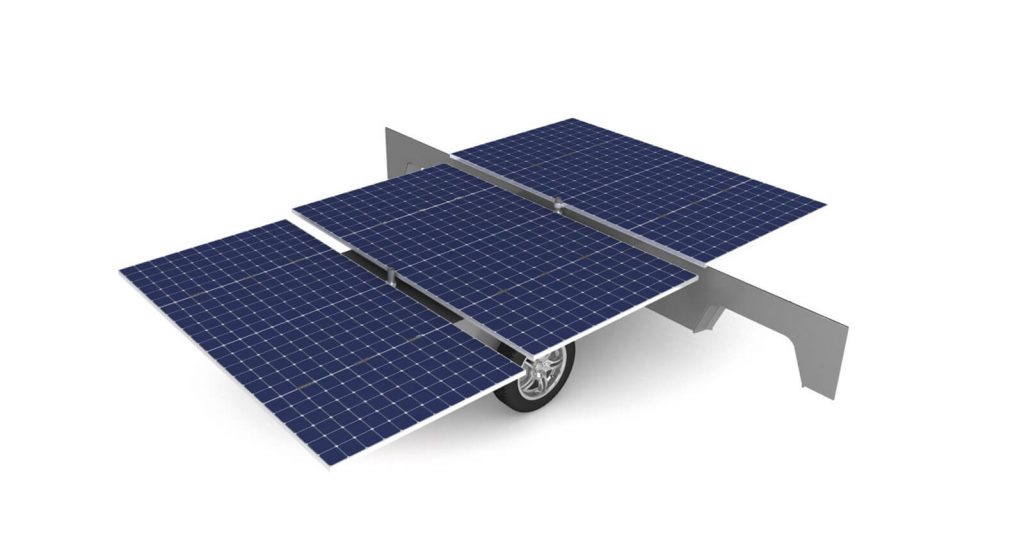

Unfolded total solar panel size: | 3.0M X 5.0M |
Battery pack Option 1： 52.8V 100AH 5.28 KWH
Option 2: 52.8V 200AH 10.56 KWH
Option 3: 52.8V 300AH 15.84 KWH
Solar control and inverter: Working power: 5000W, Peak power: 11000W.
MPPT control, high-frequency isolation, on grid in AC coupling mode, and load operation without battery.
Mobile app display and remote control With UPS power supply mode
Option 2: 52.8V 200AH 10.56 KWH
Option 3: 52.8V 300AH 15.84 KWH
Solar control and inverter: Working power: 5000W, Peak power: 11000W.
MPPT control, high-frequency isolation, on grid in AC coupling mode, and load operation without battery.
Mobile app display and remote control With UPS power supply mode

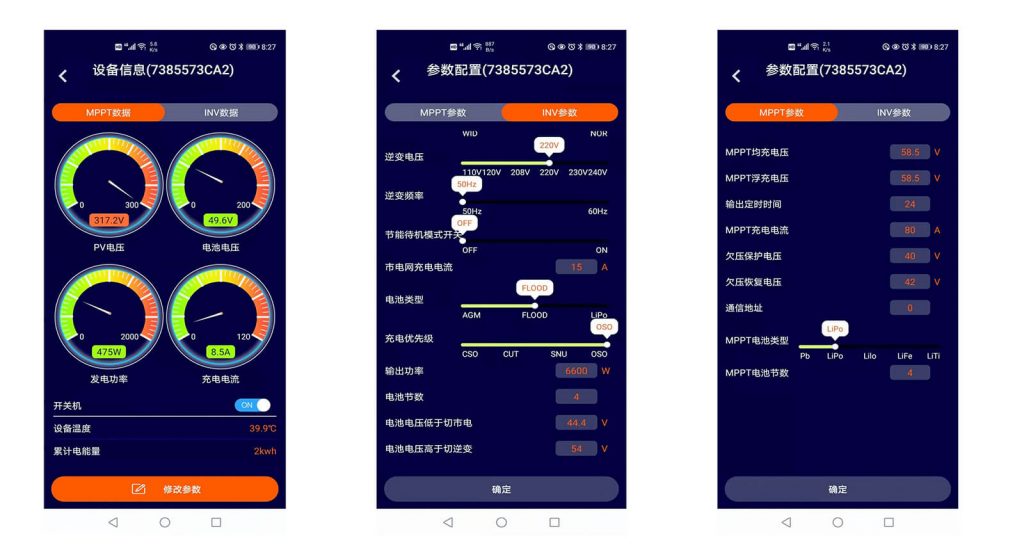

APP Remote Control and Data
All the battery cell and chips are from world famous leading suppliers in order to keep quality battery pack and charging system.
Battery pack and charging system follow and comply with international standards
